Rubber Gasket

Short Description:

Rubber gasket is widely used in automobile, electronics, chemical industry, antistatic, flame retardant, food, various mechanical equipment and other industries, can play the role of gasket, seal, buffer and so on.

NBR, SBR, CR, EPDM… Rubber gasket has oil resistance, acid and alkali resistance, cold and heat resistance, aging resistance and other properties, can be directly cut into various shapes of sealing gasket, widely used in medicine, electronics, chemical industry, antistatic, flame retardant, food and other industries.
Between different part environments and performance needs, we identify which materials and manufacturing processes would provide the best, most cost-effective gaskets for your needs. Potential gasket materials include:NR, Neoprene,Nitrile, Silicone, Viton, EPDM, TPE
Hardness: 20ShA – 80ShA


Product Detail

Product Tags

Custom Made

If you're in need of custom rubber gaskets,We produce parts according to your needs

At SanDa, we’re here to help solve your problems through premium, cost-effective rubber gasket solutions.

The difference of the production technology: die cutting and compression molding

Die cutting

1. Tooling charges: low

2. Tooling lifetime: short

3. Tolerance: big

4. Price: cheap

5. Application: general sealing or vibration application area

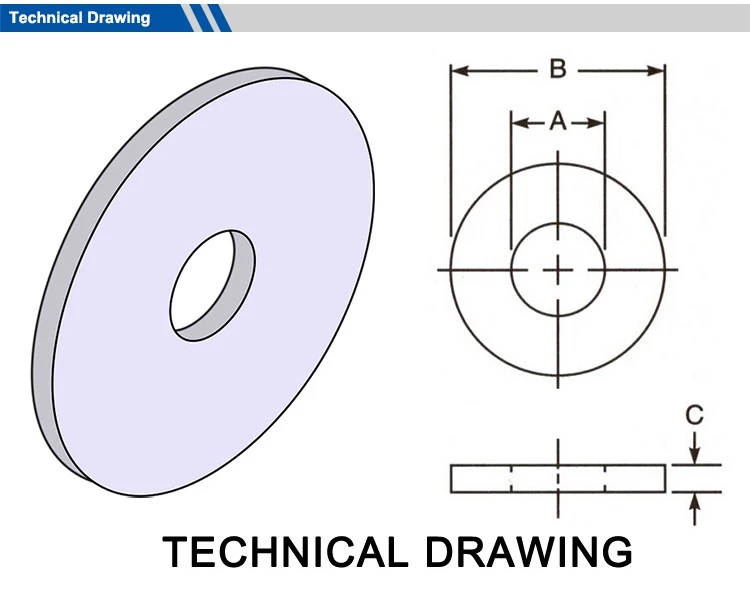

Rubber Gasket (8)

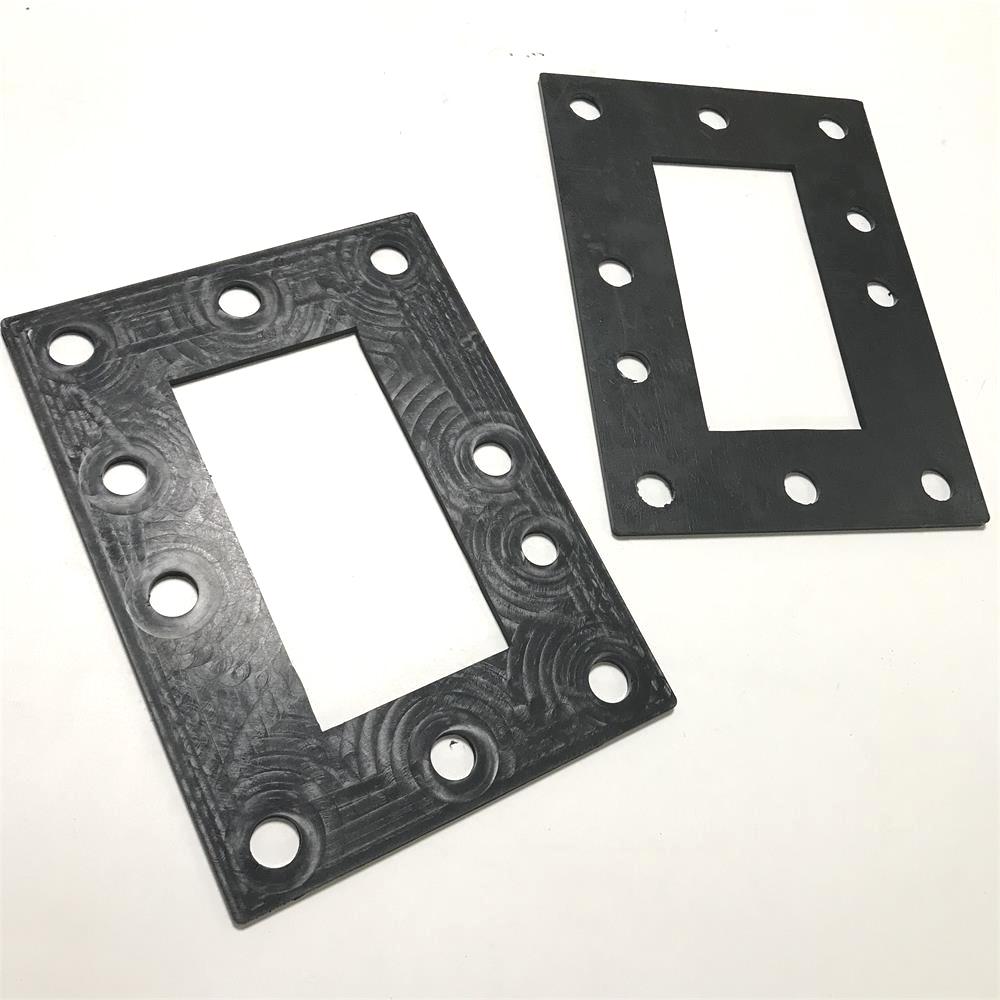

Rubber Gasket (13)

Compression molding

1. Tooling charges: expensive

2. Tooling lifetime: long

3. Tolerance: Good, all RAM standards

4. Price: reasonable

5. Application: Sealing requirements and strictly tolerance control area.

We provide standard sizes and Custom-molded for various dimensions

Any color: black, white, blue, green, red, yellow, orange, purple, brown, and else

Customized packing is accepted
Material NBR, SBR, HNBR, EPDM, FKM, MVQ, FMVQ, CR, NR, SILICONE, etc.

according to the customers' requirements

Dimension Standard sizes, also can be customized

Hardness 20-90±5 Shore A

Tolerance According to ISO 3302:2014 (E)

Rapid Development

line A. From drawing, new tool design to mold support and samples.

B. Prototype mold, usually in 7 days;

C. Mass production mold, usually in 1~2 weeks.

RoHs & REACH RoHs & REACH directive compliant green products

Advantages Professional sales-team and technology-team, molding center, high-tech testing machine and so on

Parameter

Material NBR, SBR, HNBR, EPDM, FKM, MVQ, FMVQ, CR, NR, SILICONE, etc.

according to the customers' requirements

Dimension Standard sizes, also can be customized
Hardness 20-90±5 Shore A
Tolerance According to ISO 3302:2014 (E)
Rapid Development

line

A. From drawing, new tool design to mold support and samples.

B. Prototype mold, usually in 7 days;

C. Mass production mold, usually in 1~2 weeks.

RoHs & REACH RoHs & REACH directive compliant green products
Advantages Professional sales-team and technology-team, molding center, high-tech testing machine and so on

Our Items Profile

Rubber Molded Parts/ Rubber Extruded Parts/Rubber cord/ Silicone seal stirps/ Foam Rubber Parts/ Rubber Bellow/ Rubber Grommet/ Rubber Gasket/ O-ring & Seals / Rubber Car Jack Pad/ Rubber Bearing & Bushing/ Mounting/ Rubber Parts with Adhesive / Rubber Bonded to Metal Parts / Silicone Products / Silicone Daily Supplies/ Baby Items / Keypad / Suction Cup/ Plastic Parts/ , etc..

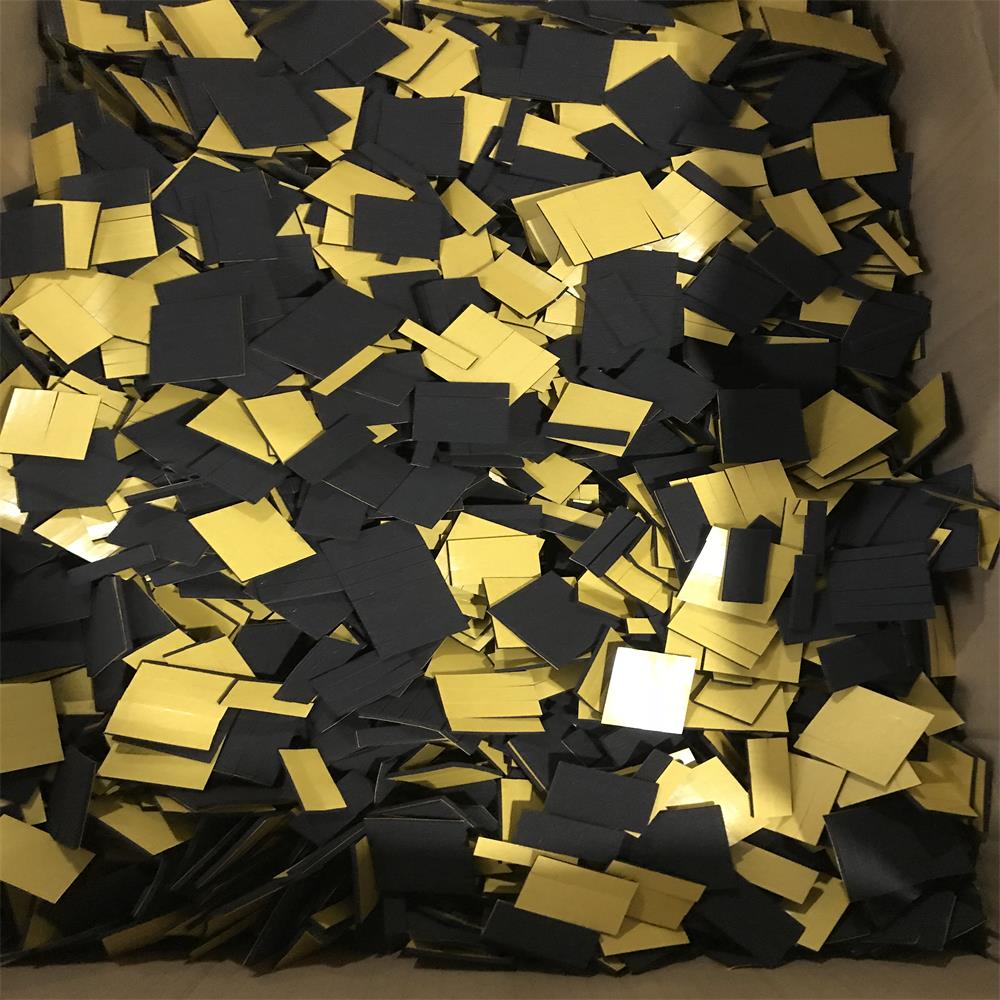

Rubber Gasket (12)

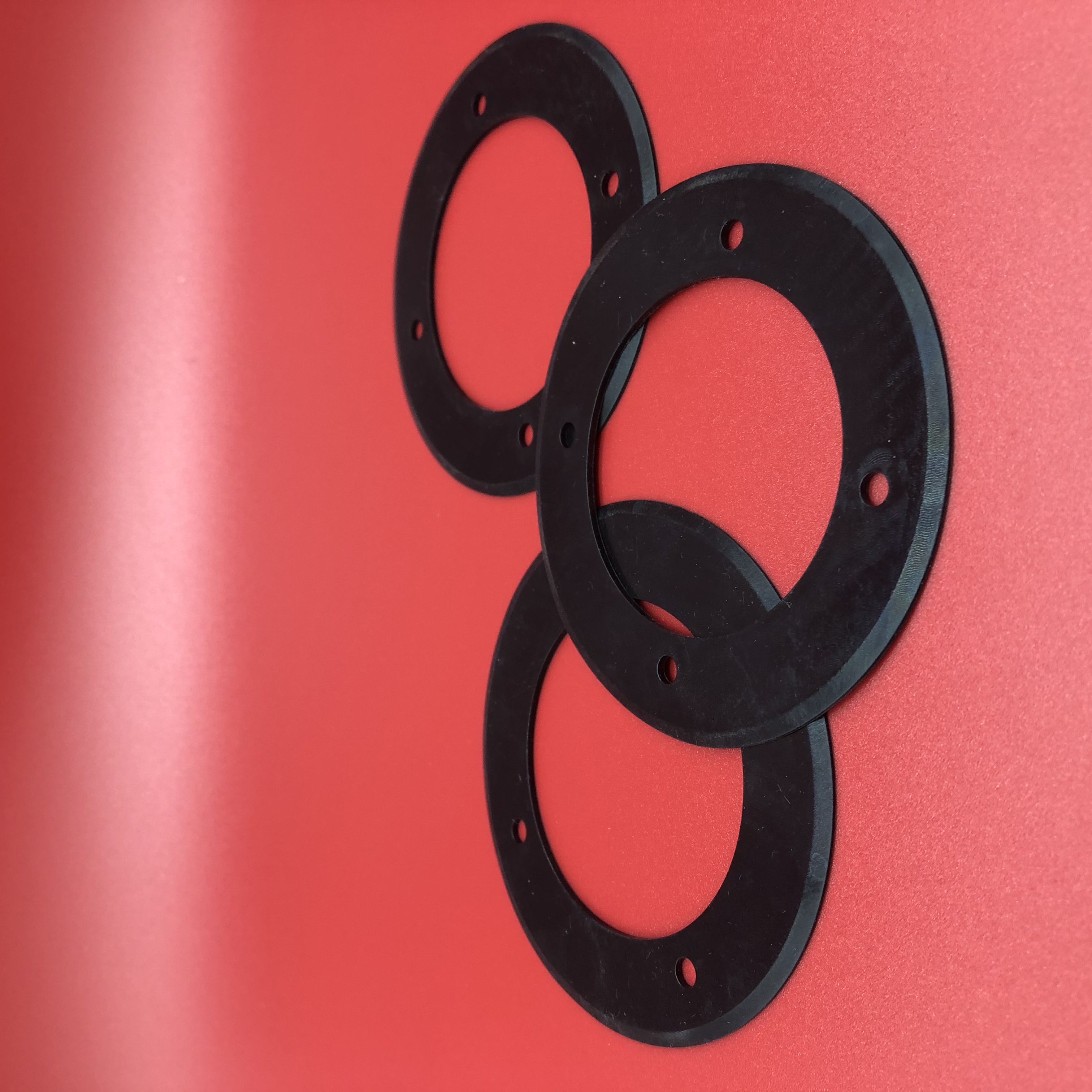

Rubber Gasket (1)
